TUTORIAL: How to make polar stripes in Adobe Illustrator

Well i started this tutorial because of a project I had to create for a client. I wanted to do a polar stripe set like the WWII Japanese flag to enhance a little bit the background. For this design I’ve chosen Adobe Illustrator (for totally freedom in resolution). In this point I must admit that I didn’t search for a plugin or a stock vector (probably there’s something out there that it can do this kind of FX) but I tried it manually.

Other techniques might be on the internet but the method I will show you (I think) is the fastest one. No more talking, let’s start…

Use Adobe Photoshop like a pro! Video tutorials

Making WWII Japanese flag stripes in Adobe Illustrator

Launch Adobe Illustrator and make a new document. Size doesn’t matter but as always try to be specific with the final output.

polar01 How to make polar stripes in Adobe Illustrator

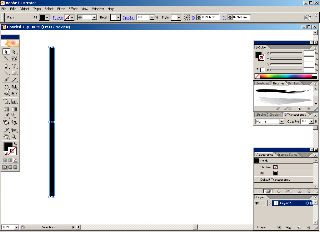

Make a box (extend it outside of the canvas) as thick as you want. Color it with a favorite color. Be specific what colors you will use because when you finalize this you can’t change the colors (you’ll have to start all over).

polar02 How to make polar stripes in Adobe Illustrator

We are going to make a second box either by drawing it again or by drag and copy the first one. I prefer drag and copy but the choise is yours. Place the second box near the first and color it.

polar03 How to make polar stripes in Adobe Illustrator

Now pick the two boxes simultaneously and drag and copy them, placing them near their initial position. If you done this right you must have 4 boxes. Good!

polar04 How to make polar stripes in Adobe Illustrator

Repeat these steps until you cover all the canvas in width. (TIP: You can do this by using Object->Transform->Transform Again or Ctrl+D).

polar05 How to make polar stripes in Adobe Illustrator

Ok, we have a pattern of enough stripes with various colors. But how can we achieve the famous polar effect in Illustrator? We have to cheat a little bit!

Pick all the boxes and make them an ART BRUSH (Tip: Drag them in the brushes palette and choose New Art Brush in the following menu).

polar06 How to make polar stripes in Adobe Illustrator

In the Art Brush options choose the direction to be right or left. (you can always experiment with these options).

polar07 How to make polar stripes in Adobe Illustrator

Now create a small circle. Apply the art brush you just made on the circle. Voila! You have a great polar stripe set ready for your design!

polar08 How to make polar stripes in Adobe Illustrator

Note: If the polar looks like the photo below, delete some boxes or draw some more. I think the number of the boxes must be even.

polarerror How to make polar stripes in Adobe Illustrator

And here is my final design…

mockup AFROS net How to make polar stripes in Adobe Illustrator

The photo elements I bought them from Stockxpert.com – a great and very affordable photo databank.

Hope you find it a useful tutorial for the Adobe Illustrator and you did like the overall design, if you did please share and bookmark it.


, , , , , , , ,
